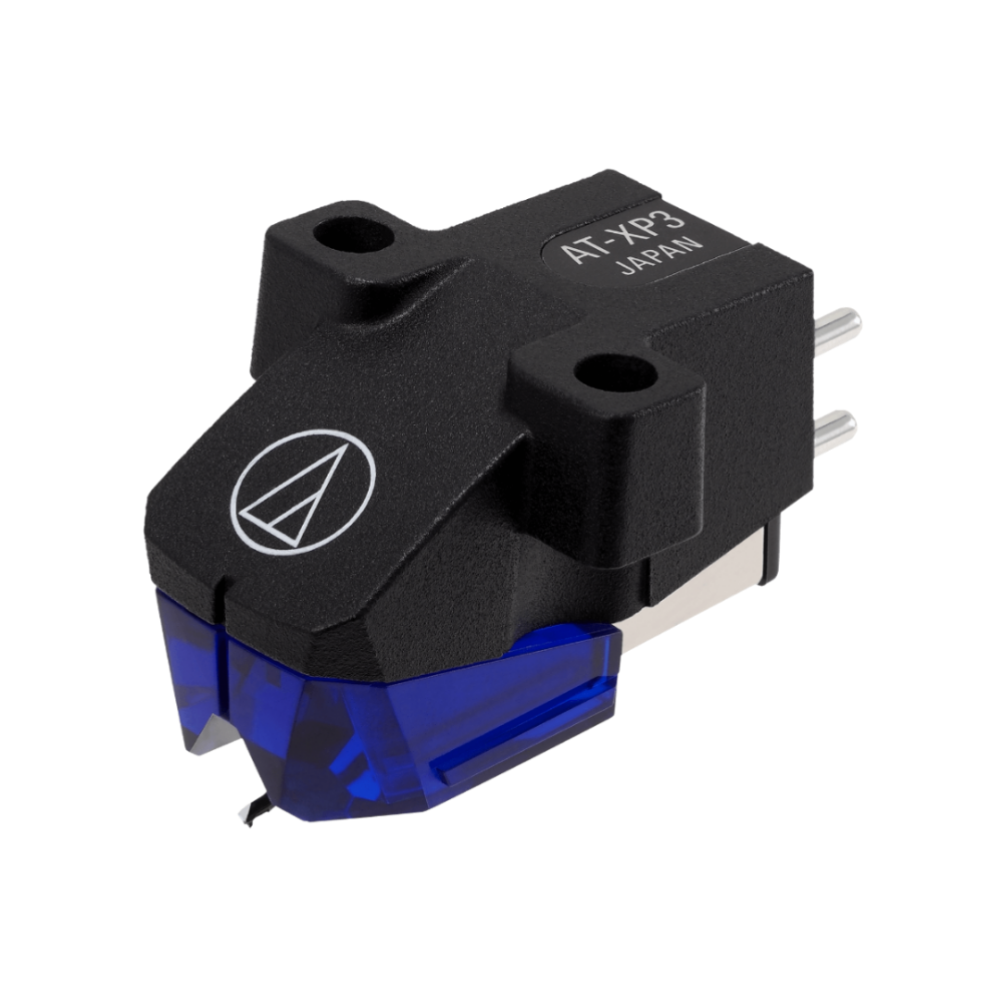

Audio Technica AT-XP3 | DJ Conical Cartridge

Features The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.   Specifications Cartridge & Stylus Frequency Response 20 to 18,000 Hz Channel Separation 20 dB (1 kHz) Vertical Tracking Angle 20 degrees Vertical Tracking Force 2.0 to 4.0 g (standard 3g) Stylus Construction Bonded Round Shank Recommended Load Impedance 47,000 Ω Coil Impedance 6,700 ohms (1 kHz) Coil Inductance 550 mH (1 kHz) Output Voltage 5.5 mV (at 1 kHz, 5 cm/sec) Output Channel Balance 2.0 dB (1 kHz) Stylus Shape Conical Cantilever Carbon reinforced ABS Static Compliance 20 x 10 – 6 cm / dyne Dynamic Compliance 6.0 x 10 – 6 cm / dyne (100 Hz) Mounting Half-inch Cartridge Weight 6.2g Dimensions 17.2 x 17.8 x 28.3 ( H x W x D mm) Accessories Included Two 11 mm installation screws; Two 8 mm installation screws; Two washers Two Nut Non-magnetic screwdriver Model AT-XP3 Recommended Load Capacitance 100-200 pF Replacement Stylus ATN-XP3 Stylus Size 0.6 mil
