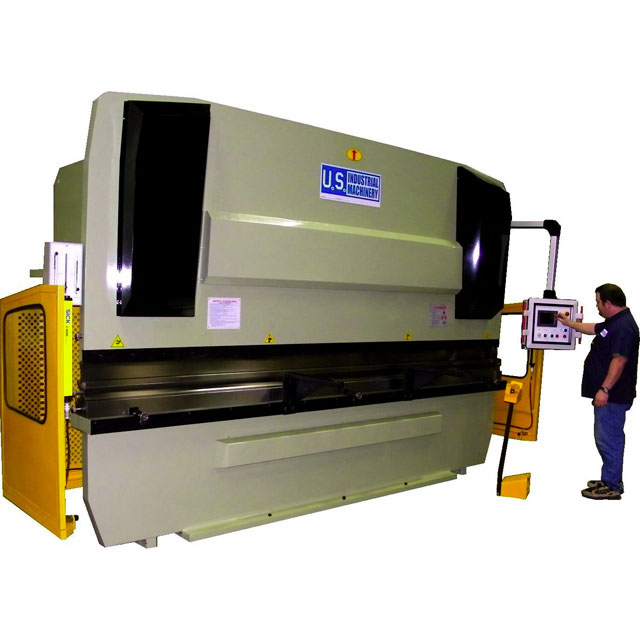

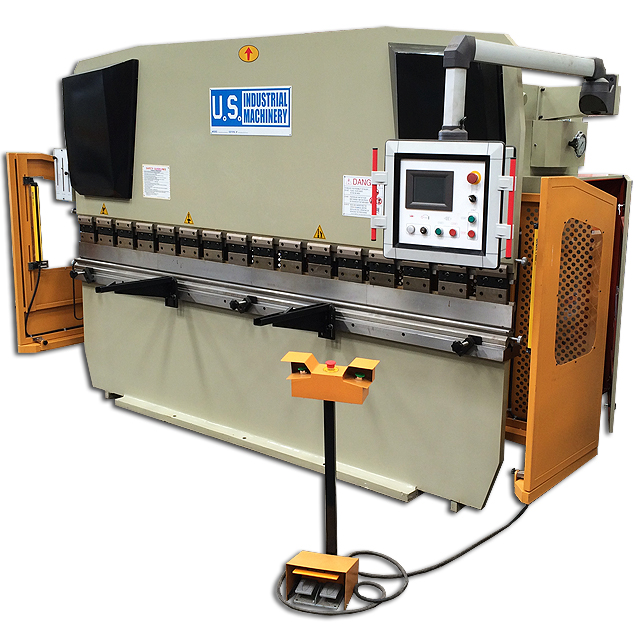

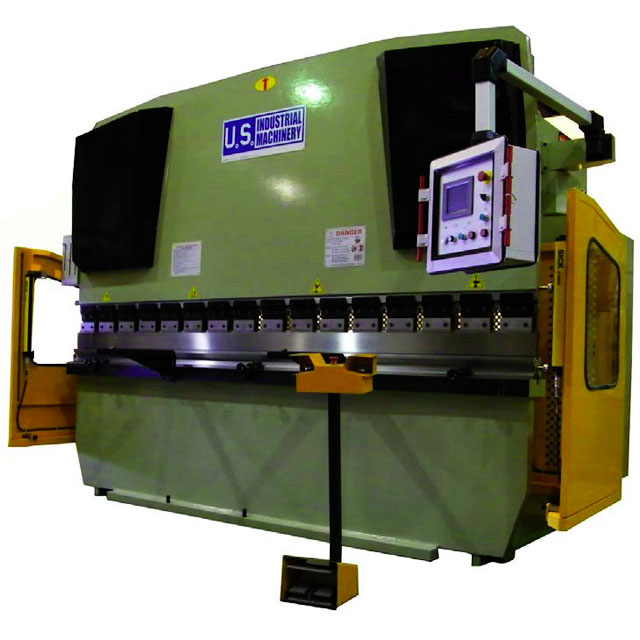

10′ x 125 Ton CNC Hydraulic Press Brake USHB125-10

U.S. Industrial 10′ x 125 Ton CNC Hydraulic Press Brake USHB125-10 Ram Deflection Adjustment. Mechanical Ram Depth Control. Massive Torsion Bar for Parallelism. Forged Heavy Duty Cylinder and Cylinder Body. Three Speed Ram. Rapid Approach, Bending Cycle and Rapid Retreat. Bottom Time Delay. All Steel Construction. Inching, Single Cycle and Continuous Operation. Ram takes standard American Tang Tooling (1/2″ x 5/8″). Space between Ram Tool Clamps allows for deep box bending. Bed has slot for standard American tang tooling. Bed also holds tooling with capture clamps. Free Gooseneck Punch and multi-opening Die for up to 90º forming in 10 gauge mild steel *SPECIAL NOTE* The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. THERE IS NO WARRANTY ON THESE ITEMS. *For non-CNC or other configurations and options, please call to check delivery. EQUIPPED WITH: CNC 2-axis Color Graphic Computer Control. SICK model 4000 light curtain system.
