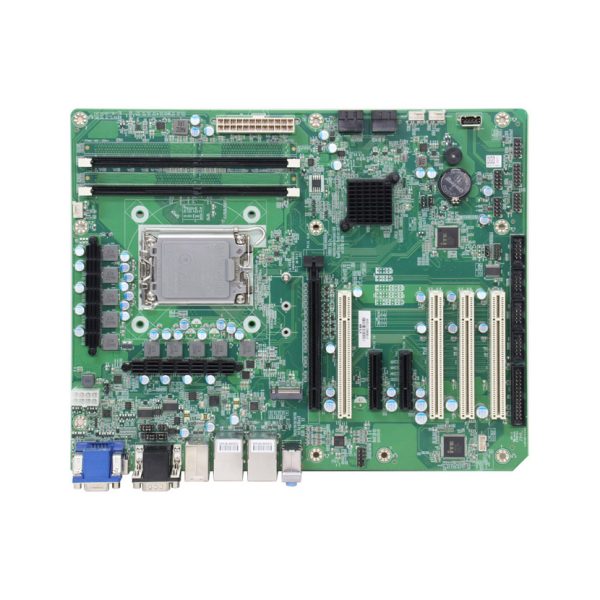

H610 chipset ATX motherboard for industrial automation, compatible with 4U chassis.SpecificationModel No.ATX-809CPUSupports Intel 12/13/14th Gen LGA1700 Core i9/i7/i5/i3 & Pentium/Celeron processorsChipsetIntel H610Memory2*DIMM memory sockets, supports dual-channel DDR4 3200MHzMax 64GBStorage4x SATA III1x M.2（2242/2260/2280 Key-M SSD socket, supports Nvme X1）BIOS64Mb SPI FLASHDisplayVGA HDMI DP triple displayVGA：1*DB15 VGA, Max resolution 1920×1080@60HzHDMI：1*HDMI, Max resolution 4096×2160@60HzDP ：1*DP, Max resolution 7680 x 4320@60HzEthernet2*LAN：1*Intel i219V Gbe NIC 1*Intel i226 2.5G NICSerial port6*RS232 COM，COM1 supports RS232/485/422，COM2 supports RS232/485，COM3-6 supports RS232USB2*USB3.2、2*USB3.0（I/O），6*USB2.0AUDIORealtek ALC897；supports Line-out，Line-in，Mic-inI/O1x LPT，1x PS/21x TPM2.0GPIO1 *2x 5 Pin 2.54mm GPIO interface, supports 4 input 4 outputWatchdog1~255s resetExpansion1*PCI-E 16X 4.01*PCI-E 4X 3.0，1*PCI-E 1X 3.0（PCIE-E 4X socket）4*PCIPower SupplyATX 24pin 8pinEnvironmentOperating Temp：0℃~60℃Storage Temp：-20~85℃Humidity：5%~95%，Non-condensingOSWin10、Win11，LinuxDimension305mm x 245mm
