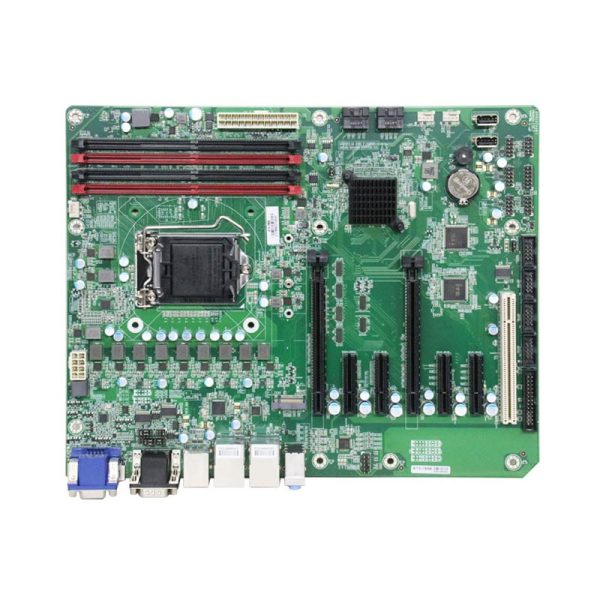

Q470 chipset ATX motherboard for industrial automation, compatible with 4U chassis.SpecificationModel No.ATX-789BCPUSupports Intel 10th/11th Gen LGA1200 Core i9/i7/i5/i3 & Pentium/Celeron processorsChipsetIntel Q470Memory2*DIMM memory sockets, supports dual-channel DDR4 2400/2666/2933MHzMax 64GBStorage4x SATA III1x M.2（2242/2260/2280 Key-M SSD socket, supports Nvme PCI-e X2）BIOS64Mb SPI FLASHDisplayVGA HDMI DP triple displayVGA：1*DB15 VGA, Max resolution 1920×1080@60HzHDMI：1*HDMI, Max resolution 4096×2160@60HzDP ：1*DP, Max resolution 7680 x 4320@60HzEthernet2*LAN：1*Intel i219V Gbe NIC 1*Intel i210 Gbe NICSerial port6*RS232 COM，COM1 supports RS232/485/422，COM2 supports RS232/485，COM3-6 supports RS232USB8*USB3.2（I/O），6*USB2.0AUDIORealtek ALC897；supports Line-out，Line-in，Mic-inI/O1x LPT, 1x PS/21x TPM 2.0GPIO1 *2x 5 Pin 2.54mm GPIO interface, supports 4 input 4 outputWatchdog1~255s resetExpansion2*PCI-E 16X 4.04*PCI-E 4X 3.01*PCIPower SupplyATX 24pin 8pinEnvironmentOperating Temp：0℃~60℃Storage Temp：-20~85℃Humidity：5%~95%，Non-condensingOSWin10、Win11，LinuxDimension305mm x 245mm
