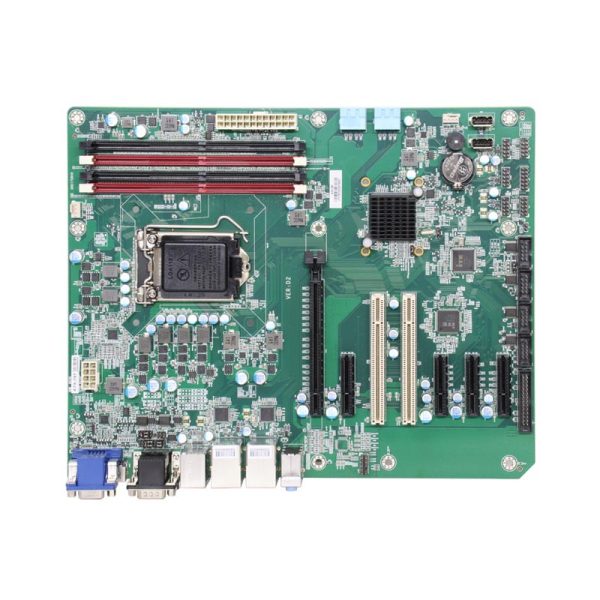

Q170 chipset ATX motherboard for industrial automation, compatible with 4U chassis.SpecificationModel No.ATX-787CPUSupports Intel 6th/7th/8th/9th Gen LGA1151 Core i7/i5/i3 & Pentium/Celeron processorsChipsetIntel Q170Memory4*DIMM memory sockets, supports DDR4 2133/2400/2666MHzMHzMax 64GBStorage4x SATA IIIBIOS64Mb SPI FLASHDisplayVGA HDMI DP triple displayVGA：1*DB15 VGA, Max resolution 1920×1080@60HzHDMI：1*HDMI, Max resolution 4096×2304@24HzDP：1*DP, Max resolution 4096×2304@60HzEthernet2*LAN：2*Intel i210 Gbe NICSerial port6*RS232 COM，COM1 supports RS232/485/422，COM2 supports RS232/485，COM3-6 supports RS232USB6*USB3.0（I/O），8*USB2.0(2 onboard encrypted ports)AUDIORealtek ALC897；supports Line-out，Line-in，Mic-inI/O1x LPT1x PS/2GPIO1 *2x 5 Pin 2.54mm GPIO interface, supports 4 input 4 outputWatchdog1~255s resetExpansion1*PCI-E 16X 3.03*PCI-E 4X 3.0, 3*PCI-E 1X 3.0(PCI-e 4x socket)2*PCIPower SupplyATX 24pin 8pinEnvironmentOperating Temp：0℃~60℃Storage Temp：-20~85℃Humidity：5%~95%，Non-condensingOSWin10、Win11，LinuxDimension305mm x 245mm
